Profit Radiance

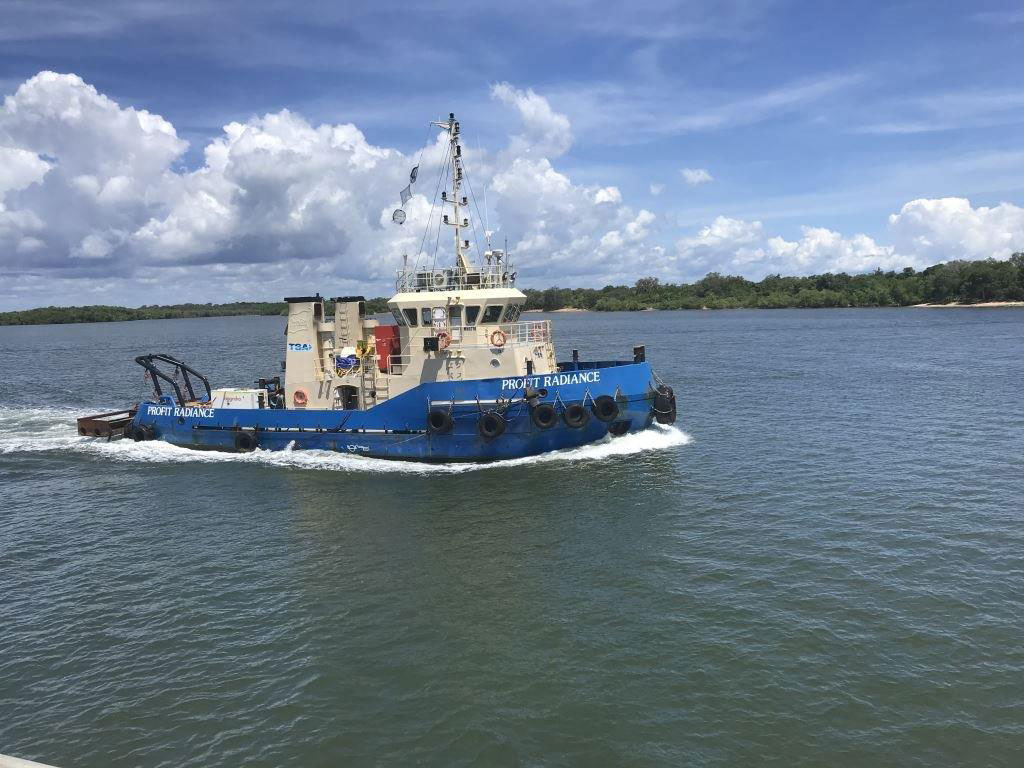

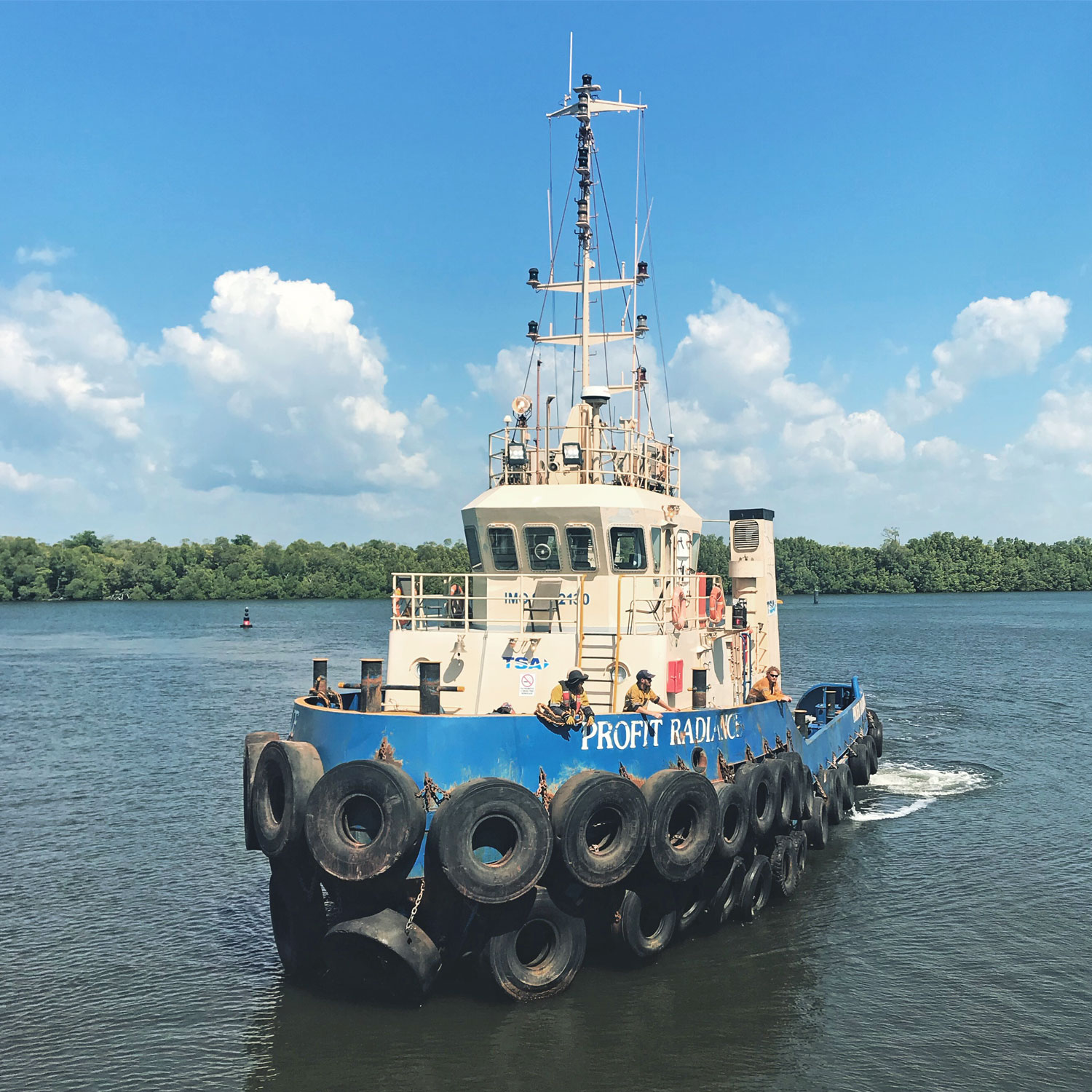

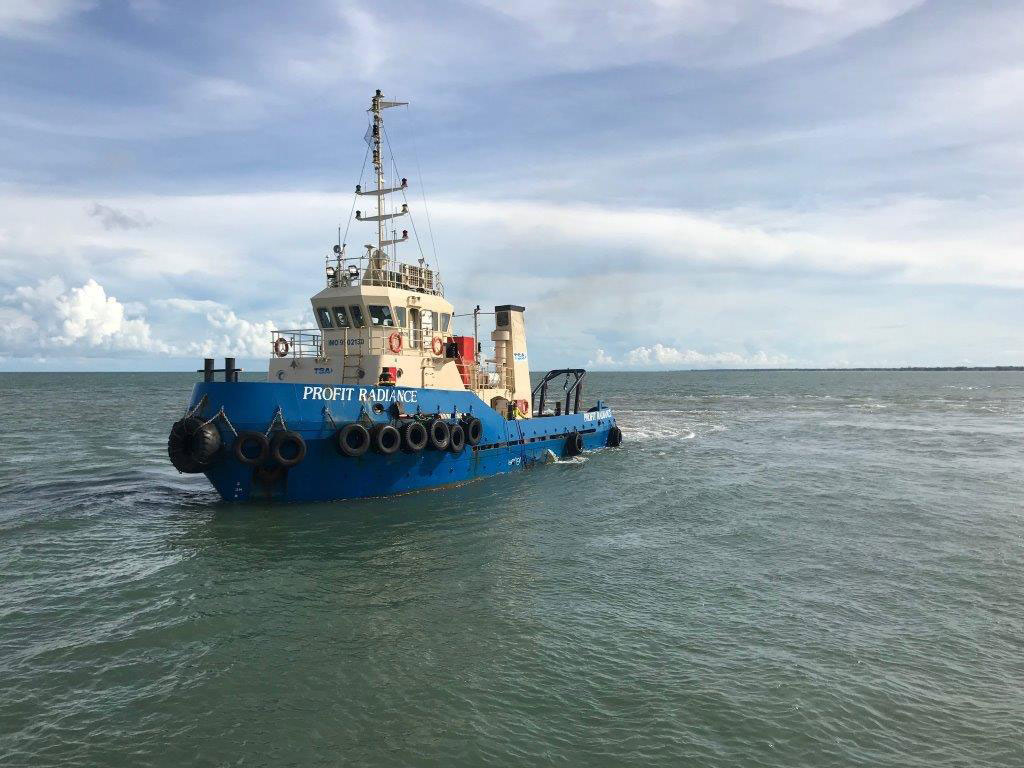

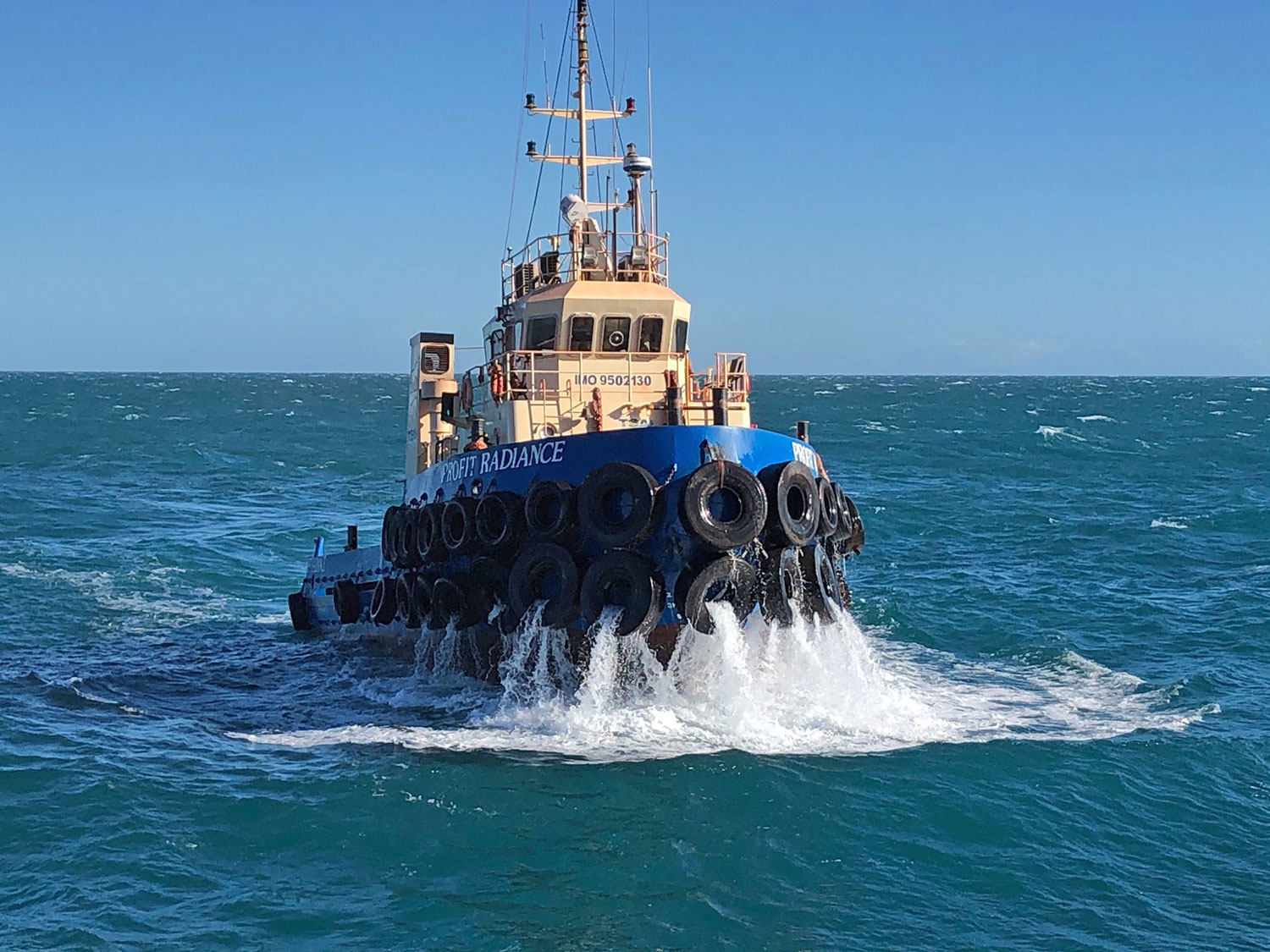

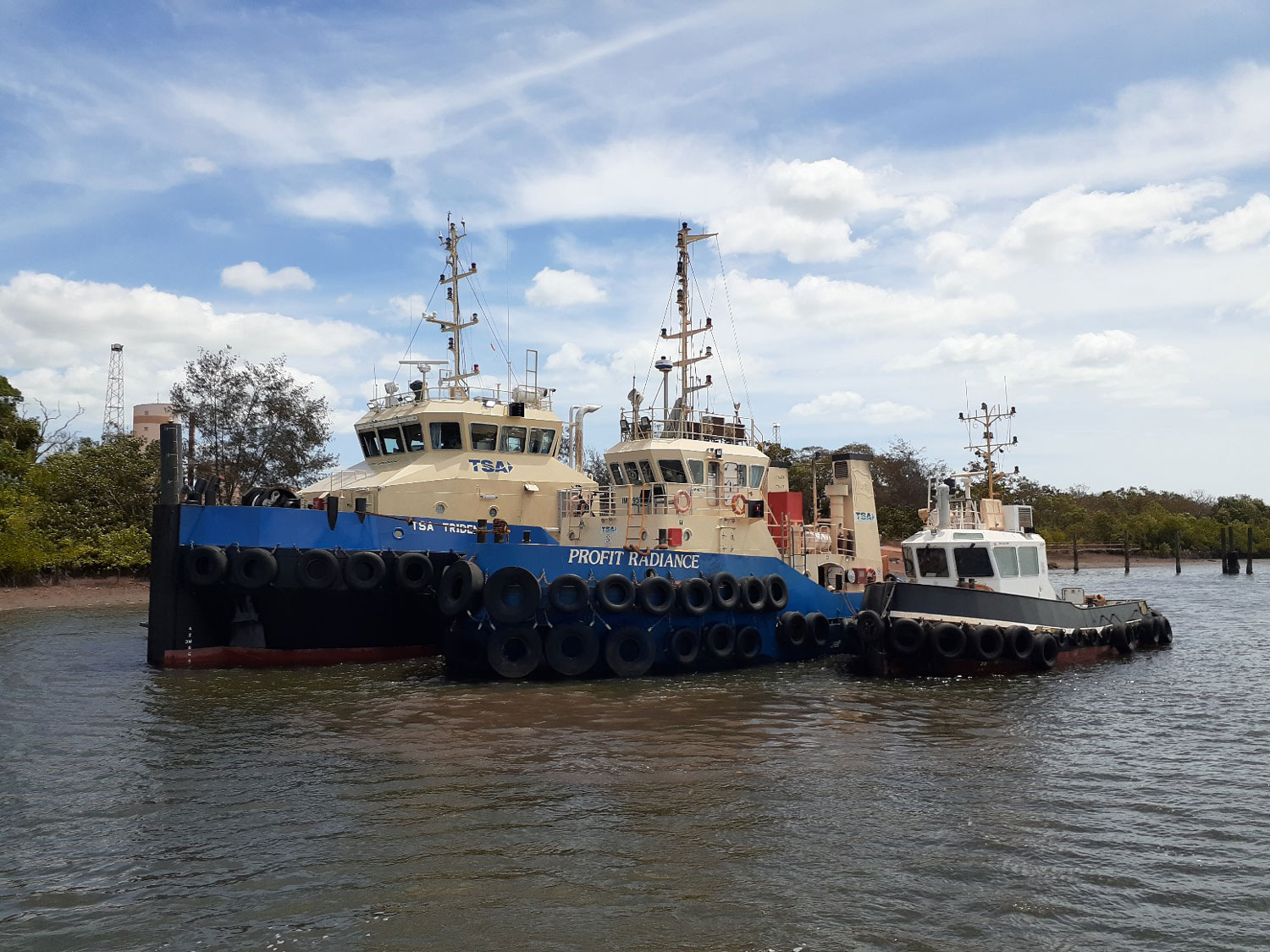

Specifications for 1600 hp twin screw tug Profit Radiance

Towage, construction, salvage, work boat

View Spec Sheet

Principal particulars

Port of Registry Fremantle
Official Number 396026
IMO Number 9502130
Classification NKK
Year Built 2010
Where Built East Malaysia
GRT / NRT 192/58
Accommodation 10 men

Main Dimension

Length Overall 26.00 m
Length Registered 24.26 m
Breadth (Mid) 8.00 m
Depth (Mid) 3.65 m
Draft 3.00 m
Fuel Capacity 136 M3
Freshwater Capacity 39 M3
Ballast 32 M3
Speed (Free Run) 10 Knots

Deck Equipment

Anchor Windlass 17.5mm Hydraulic electric, c/w (2) Warping drums
Stockless Anchor 2 x 420kgs Bower Anchors
Towing Winch 20 tons, brake holding 60Tons / Wire rope 32mm x 500mtr
Towing Hook 20 tons
Bollard Bull 21.6 ton

Machinery & Equipment

Main Engine Yanmar 6AYM-ETE. Engine S/No1237&1238
Horse Power 610Kw each / 829HP x 2 @1900 rpm each
Gear Box R/R Reintzes WAF 374, Ratio 6.10:1
Generator 2 x Mitsubishi S4K-T c /w Alternator Rated 50KW/0.89PF/3 phase 415V/50Hz/1500rpm rated 3 Phase 4wire 50Hz/1500rpm
Steering Gear 2tons Electro Hydralic S/Gear System (Joystick)
Bilge/Ballast Pump 1x ENGA Centrifugal pump 5.5kwx2900rpm
GS & Fire pump 1x ENGA Centrifugal pump 5.5kwx2900rpm
Fuel Transfer pump 1 x 1/2″ CMEC KS38 Gear pump c/w Enga Motor
FW pressure pump 1 x 1″ Davey Auto Pressure pump
Emergency F/pump 1 x 2″ Changfa air-cooled diesel engine fire pump
Oily Water Separator 1 x 0.25 m3 per hour
Propellers Manganese Bronze 4-bladed (Kort Nozzle Type)

Radio & Navigation equipment

VHF Radio Icom IC-M304 (Fms 77) M710 AC/DC Converter
SSB-ICOM FMS33AD
Radar Raymarine (24NM)
Echo Sounder Furuno FVC-620
GPS Furuno Navigator GP-32

ais

Raymarine – AIS 650 Class B
Chart Plotter Raymarine C125 12”
Vessel particulars given are believed to be correct but not guaranteed.
