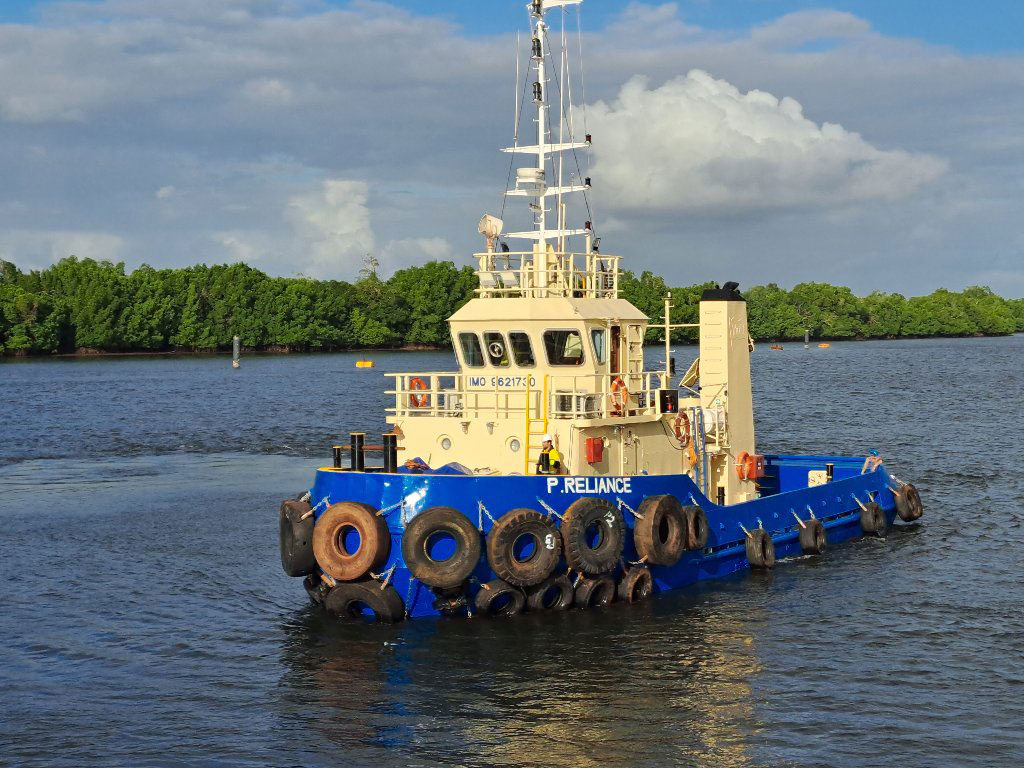

P. Reliance

Specification for 1280hp twin screw tug P. Reliance

Towing, mooring, pushing, support

View Spec Sheet

Principal particulars

Port of Registry Fremantle
Official Number 396924
IMO Number 9621730
Classification NKK
Year Built 2010
Where Built East Malaysia
GRT / NRT 144/44
Accommodation 10 men

Main Dimension

Length Overall 23.50 m
Length Registered 22.02 m
Breadth (Mid) 7.32 m
Depth (Mid) 3.20 m
Draft 2.70 m
Fuel Capacity 82.70 M3
Freshwater Capacity 25.00 M3
Ballast 42.00 M3
Speed (Free Run) 11 Knots

Deck Equipment

Anchor Windlass 1 x electric Hydraulic S/Gear System
Stockless Anchor 2x360Kgs AM2 Anchors & 17.5mm chains, Lgth 247.5m
Towing Hook 20 tons
Bollard Pull 12 tons

Machinery & Equipment

Main Engine CUMMINS KTA19M3 S/No.37237013 & 37237014
Horse Power 477Kw 640HP x 2 @1800 rpm each
Gear Box R/R Reintzes WAF 364, Ratio 6.048:1 [585Kw@1800rpm]
Generator 2 x Yanmar Marinised Genset, 25KW 415 Volts Alternator Rated 3 Phase 4wire 50Hz at 1500rpm. Rated 3 phase 4wire 50Hz/1500rpm
Steering Gear 2ton Electro Hydralic S/Gear System
Bilge/Ballast Pump 1x 2″ ITUR pump, capacity 18m3/hr 2950rpm
GS & Fire pump 1x ITUR pump x 2950rpm
Fuel Transfer pump 1 x 1/2″ CMEC KS6 Gear pump c/w Enga Motor
FW pressure pump 1 x 1″ Davey Auto Pressure pump1x 2″ Yanmar air-cooled portable diesel engine fire pump
Emergency F/pump Pump
Oily Water Separator 1 x 0.25 m3 per hour
Propellers 6″ dia x 5833mm length-KSUSF 4 bladed fixed pitch

Radio & Navigation Equipment

VHF Icom VHF Radio IC-M304 AC/DC Converter FMS77
SSB Icom SSB radio M-710 AC/DC Converter Icom AT-130
Radar Furuno 1721 (24NM)
Echo Sounder Furuno FVC-620
GPS Furuno Navigator GP-32
AIS Raymarine AIS 650 – Class B
Chart Plotter C125 12” Raymarine
Vessel particulars given are believed to be correct but not guaranteed.
